Piping engineering encompasses the entire piping design from the very concept, the final design documents through to installation supervision.

The piping is designed based on

  •  the client´s building regulations and specifications;
  • German and international standards (DIN, ANSI, BS);
  • the technical rules and regulations

Depending on the requirements of the design documents or client´s needs different CAD tools and calculation programs are used for the piping design.

The piping design includes the following major aspects:

  • Stocktaking (conventional or by laser scanning)
  • Pipe class definition, component specifications, specifications and special-purpose part design
  • Strength and stress analyses

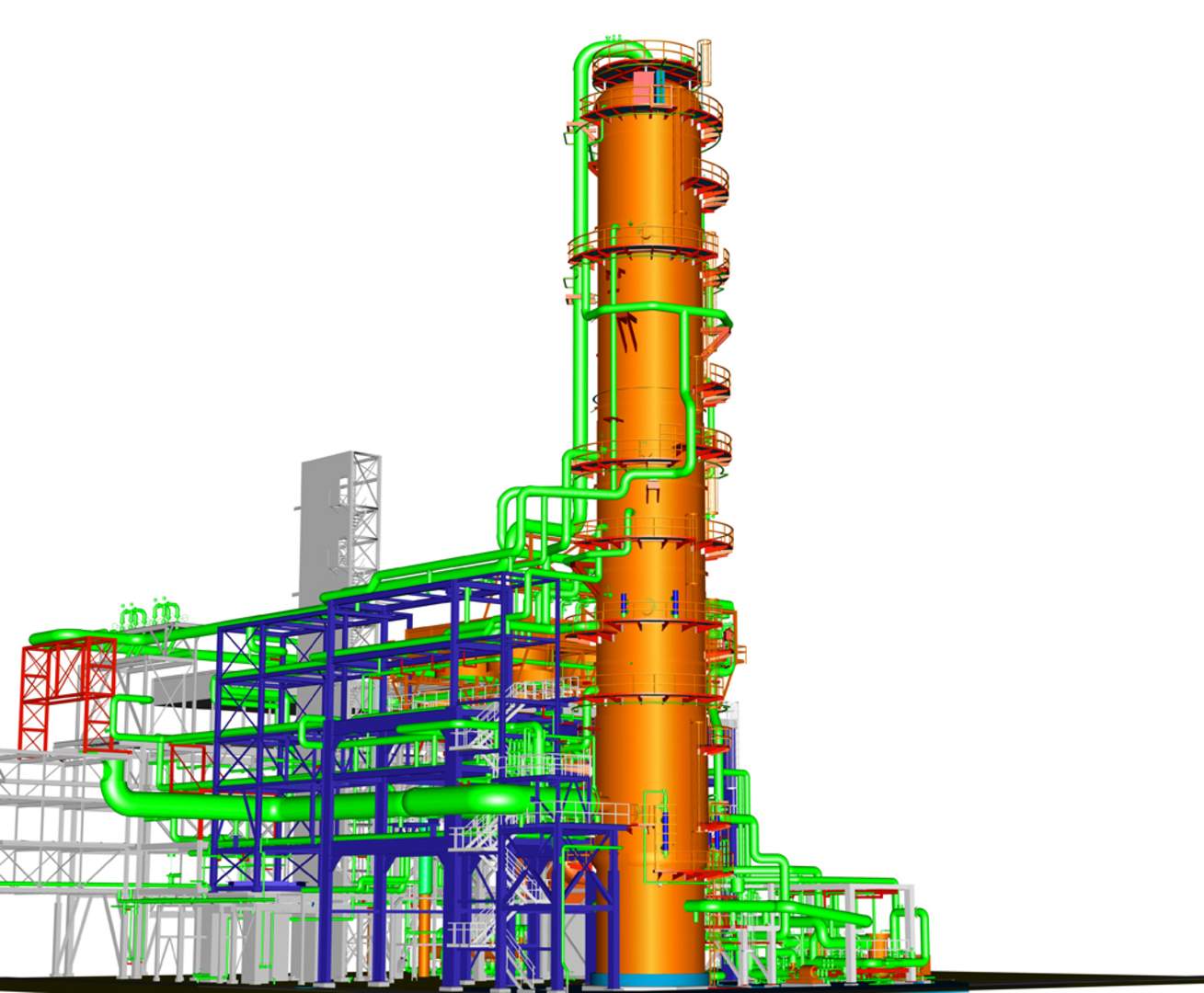

  • Complete 3D piping models
  • Generation of piping plans and isometrics
  • Bills of material
  • Total lists of components
  • Installation descriptions for piping construction, insulation, painting, labelling, scaffolds
  • As-built and testing documentation.
